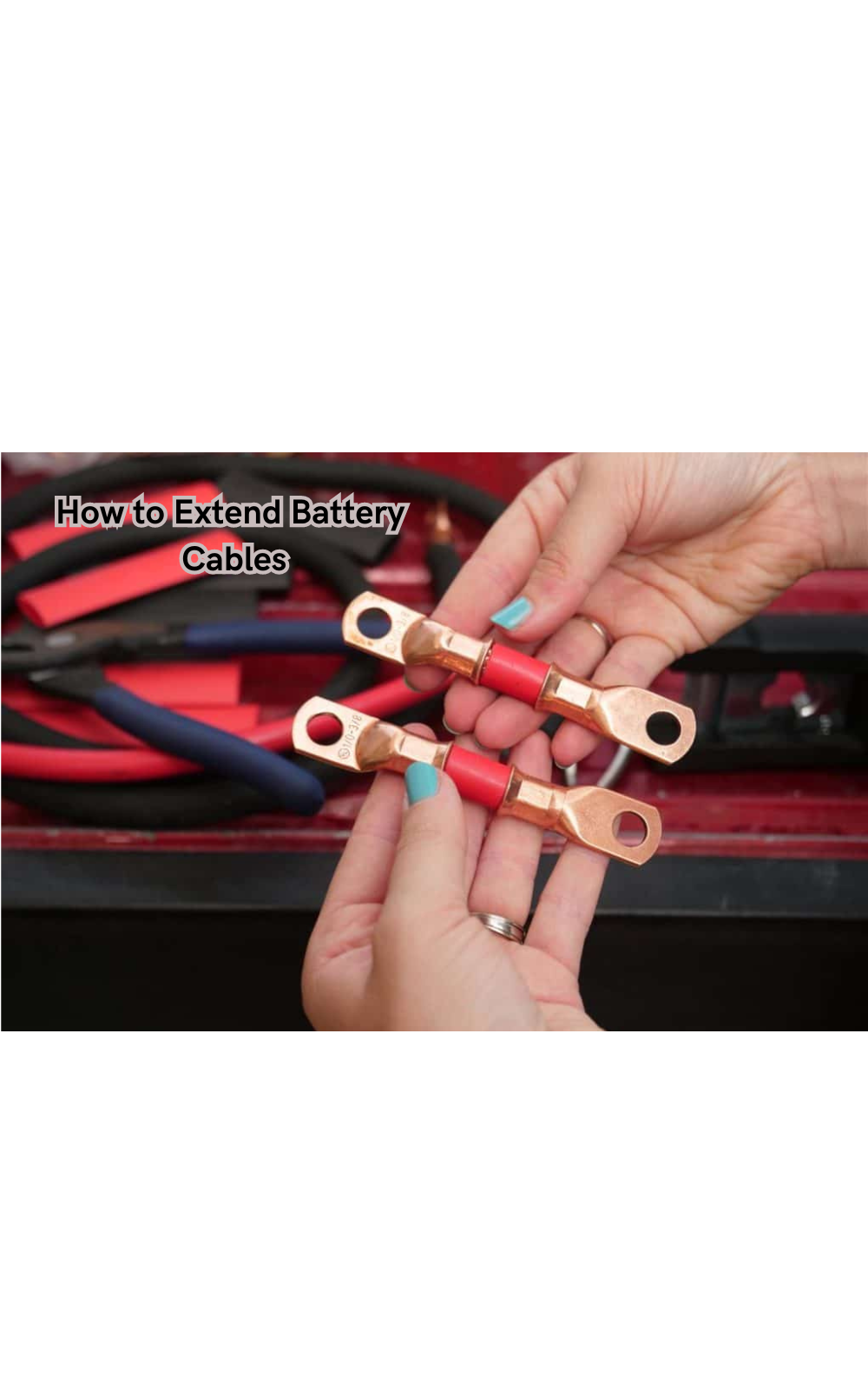

How to Extend Battery Cables
This guide delves into the essential practices for extending battery cables to support a variety of power needs.
Extending battery cables is a common consideration for various applications, from automotive to renewable energy systems, where power sources need to reach distant components.
Understanding the proper methods for extending these cables is crucial to maintaining efficiency, safety, and reliability. Whether in vehicles, off-grid setups, or electronic devices, ensuring secure and effective cable extensions is paramount for uninterrupted power supply.
By implementing appropriate techniques, such as using the correct wire gauge, employing secure connections, and protecting against environmental factors, individuals can extend battery cables effectively while minimizing the risk of voltage drops, overheating, or electrical hazards.
This guide delves into the essential practices for extending battery cables to support a variety of power needs.
Overview Battery and Cable Basics
Before delving into the specifics of extending battery cables, it is essential to understand the basics of batteries and cables themselves.
A battery is a device that stores chemical energy and converts it into electrical energy when needed. Batteries are made up of one or more cells, each containing positive and negative electrodes, electrolytes, and separators. Battery posts or terminals allow for connection to electrical equipment.
Cables, on the other hand, are conductors that transmit electric power from a source to a load. They are typically made of copper or aluminum and come in different sizes called wire gauges.
The size and type of battery and cable used will depend on the intended application's power needs. Therefore, understanding the basic principles of batteries and cables is crucial for choosing suitable components when extending battery cables. For battery cable extensions, it is also important to consider factors such as voltage and amperage requirements, as well as the distance between the battery and the load.
Can Battery Cables Be Too Long?
Yes, battery cables can be too long. The longer the cable, the higher the resistance, which can lead to voltage drops and power inefficiencies. This is why it is essential to carefully consider the length of battery cables when extending them.
It is also worth noting that different applications may have varying limitations on cable lengths. Extension cable length is dependent on factors such as voltage and amperage requirements, environmental conditions, and equipment compatibility. From battery terminals to fuse block connections, each connection point can add resistance and affect the overall power efficiency.
For example, vehicles typically have a maximum cable length of 20 feet for the positive battery terminal and 10 feet for the negative terminal. In contrast, solar panels may have longer extension cable lengths due to lower voltage requirements and minimal power loss concerns.
How to Extend Battery Cables
When extending battery cables, several factors must be considered to ensure efficiency, safety, and reliability. Here are some essential steps and techniques to follow:
Gather Materials and Tools:
Before beginning any project, it is crucial to have all the necessary materials and tools at hand. This includes suitable wire gauges, connectors, crimping tools, heat shrink tubing, and cable ties. Soldering iron, flux, and solder may also be needed for more secure connections. Go to an auto parts store and buy the correct gauge wire, connectors, heat shrink tubing, crimping tools and soldering iron.
Determine Cable Length:
As mentioned previously, the length of battery cables can significantly affect their performance. To determine the appropriate cable length, carefully measure the distance between the battery and the load, considering any twists or turns in the cable route.
It is recommended to add a few extra inches to allow for flexibility and future adjustments. Replacement cables can also be used to extend existing cables if needed. Correct length always makes a difference.
Choosing the Right Wire Gauge
When extending battery cables, it is crucial to use the appropriate wire gauge for the application at hand. The wire gauge refers to the size of the cable's diameter and determines its current-carrying capacity.
Using a wire gauge that is too small can lead to overheating and potential fire hazards, while a wire gauge that is too large can be unnecessary and costly. To determine the appropriate wire gauge for battery cable extensions, individuals should consider factors such as voltage requirements, amperage needs, and cable length.
Prepare the Cables:
Before making any connections, it is important to properly prepare the battery cables. This includes stripping the insulation from the ends of the cables, ensuring they are clean and free from any debris or corrosion.
It may also be necessary to crimp or solder new lugs onto the cable ends for secure connections. Longer cable lengths may also require the use of additional connectors or splices. Butt splice connectors are commonly used for extending battery cables.
Positive cable lugs are typically larger than negative cable lugs to accommodate the higher current flow. Additionally, labelling each cable end with a positive or negative indicator can help avoid confusion during installation. An entire cable system should also be grounded to prevent potential electrical hazards.
Connect the Cables:
Two options are commonly used when connecting battery cables: crimping and soldering. Here are the steps for each method:
Option 1: Soldering:
Soldering provides a secure connection, reducing the risk of voltage drops and potential hazards. To solder battery cable connections, individuals should first twist the strands of each wire together and then apply flux to the twisted section.
Next, heat up the joint with a soldering iron and melt the solder onto the joint until it flows evenly. Once cooled, cover the connection with heat shrink tubing for added protection.
Option 2: Crimping:
Crimping is a quicker and easier method for connecting battery cables, but it may not be as secure as soldering. To crimp cable connections, individuals should first strip the insulation from the wire ends and then insert them into the appropriate size crimp terminal.
Using a crimping tool, squeeze the terminal onto the wire until it is securely fastened. Using a crimping tool, squeeze the terminal onto the wire until it is securely fastened. Crimp terminals can then be connected using a bolt and nut or a crimp connector. It is essential to ensure a tight and secure connection to avoid any potential hazards.
Insulate the Connections:
To ensure the safety and reliability of extended battery cables, it is crucial to properly insulate all connections. This can be done using heat shrink tubing or electrical tape to cover the exposed wire and prevent any potential short circuits. Bus bar insulators can also be used to insulate multiple cable connections.
Secure and Route the Cables:
After all connections are made and insulated, it is important to secure the extended battery cables. This can be done using cable ties or other suitable methods to prevent any loose or hanging cables. It is also essential to route the cables away from any potential sources of heat, sharp edges, or moving parts to avoid damage or accidents.
Test the Connection:
Once all steps are completed, it is crucial to test the extended battery cables' performance and connections. This can be done using a multimeter to check for any voltage drops or irregularities.
Choose the cable of the right size, prepare the cable, and connect it to the battery. Use a crimping tool or soldering iron for secure connections. Extend the cables properly and test for proper connections.
Precautions and Safety Measures
When extending battery cables, it is important to take necessary precautions and follow safety measures to avoid any accidents or damage. Here are some essential tips:
- Always disconnect the battery before working on any electrical connections.
- Wear appropriate protective gear such as gloves and safety glasses.
- Use caution when working with soldering irons or crimping tools to avoid burns or injuries.
- Make sure all connections are secure and insulated to prevent short circuits or voltage drops.
- Properly route and secure cables to avoid any potential hazards.
- Test the extended battery cables before use to ensure proper connections and performance.
By following these precautions, individuals can safely extend battery cables for their specific applications.
FAQs
What are the benefits of using new cables to extend battery connections?
Using new cables ensures optimal conductivity and reduces the risk of power loss or electrical issues associated with old or worn-out cables. It also allows individuals to choose the appropriate wire gauge for their specific application.
Can you extend the wires on a battery charger?
Yes, it is possible to extend the wires on a battery charger. However, it is essential to ensure that the extended cables are compatible with the charger's voltage and amperage requirements.
Can I find battery cables of various lengths that suit my specific needs?
Yes, battery cables are available in a range of lengths, allowing you to choose the most appropriate size for extending your battery connections effectively.
How can I properly secure battery cable connections using the BB code?
Secure battery cable connections using methods like soldering, crimping, or using terminal connectors. Ensure connections are tight and insulated to prevent electrical hazards. Use cable ties and mounting brackets to secure the cables in place.
Conclusion
In conclusion, mastering the art of extending battery cables is crucial for maintaining efficient power distribution across various applications.
By following proper techniques, such as selecting the right gauge wire, ensuring secure connections, and protecting against environmental factors, individuals can extend battery cables effectively and safely.
Whether for automotive, off-grid setups, or electronic devices, a well-executed battery cable extension process ensures uninterrupted power supply and longevity of the overall system, making it a fundamental skill for DIY enthusiasts and professionals alike.
